USB Motor Controller

• Closed and open loop control for positioning two DC servo motors
• Rated voltage range from 3V to 12V
• Maximum output power per motor is 2.5W
• Use more than one USB Motor Controller on one PC
• Windows™ based control software included

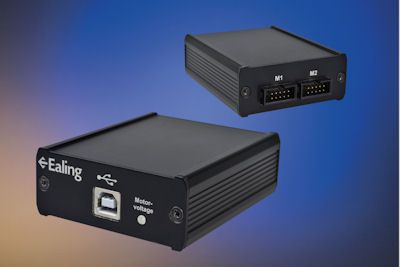

The Ealing USB Motor Controller is an electronic device used to control and drive up to two small DC servo motors, typically used in ultra-precision positioning systems with resolutions of less than one micron.
The USB Motor Controller is easy to operate, can be connected directly to the USB port of a PC, and no additional power supply is needed.
In addition to Ealing's stand-alone control software, LabVIEW™ drivers also available for easy integration into existing systems
Using a USB hub is recommended, especially when more than one USB motor controller is being used.
The USB Motor Controller is also available as an OEM product.

Package Includes:
• 1 USB Motor Controller
• USB 2.0 PC to USB Motor Controller cable
• Controller Center Software
• User Manual

 *Software and user manual provided on a USB drive.

Dimensions: 84 mm x 69.1 mm x 28 mm

To watch our Motion Control Software in action, please see our video.
