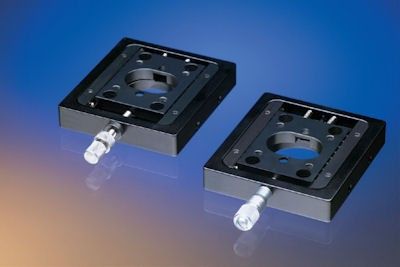

Manual Single Axis Stage, 6.5 mm Travel, Micrometer Actuator, Metric (Top Plate Not Included)

Travel Range -
        Thumbscrew: 12.7 mm
        Micrometer: 6.5 mm
Resolution -
        Thumbscrew Actuator: 1.0 μm
        Micrometer Actuator: 1.0 μm
        MotorDriver Actuator: 0.1 μm
        EncoderDriver Actuator: 0.05 μm
Tracking Accuracy: 2 μm
Reading Accuracy: 1 division = 10 μm (micrometer stages only)
Load Capacity -
        Horizontal: 5.5 kg
        Vertical: 0.5 kg (1 kg with drive below the stage)
Weight (with micrometer): 0.15 kg
